產品介紹
ASUS PRIME Z690M-PLUS D4-CSM(M-ATX/1H1P/Intel 1G/註冊四年保)
產品規格
中央處理器(CPU)Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

晶片組Z690
記憶體4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)
/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II
*Actual memory data rate depends on the CPU types and DRAM modules, for more
information refer to www.asus.com for memory support list.

顯示功能

1 x DisplayPort**

1 x HDMI® port***

*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

**Support 4K@60Hz as specified in DisplayPort 1.4.

***Support 4K@60Hz as specified in HDMI 2.1.

音效

Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
網路
1 x Intel® 1Gb Ethernet

ASUS LANGuard

無線通訊模組

M.2 slot only (Key E, CNVi & PCIe)*

*Wi-Fi module is sold separately.
擴充槽

Intel® 12th Gen Processors*

1 x PCIe 5.0/4.0/3.0 x16 slot

Intel® Z690 Chipset**

1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)

2 x PCIe 3.0 x1 slots

* Please check PCIe bifurcation table in support site.

** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot

儲存裝置介面

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel® 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280

- Intel® 12th Gen processors support PCIe 4.0 x4 mode.

Intel® Z690 Chipset**

M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.

** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.

USBRear USB:Total 8 ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

1 x USB 3.2 Gen 2 port (1 x Type-A)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)


Front USB:Total 7 ports

1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports*

* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

內接插座1 x TB Header (附加 TB 卡)

Fan and cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

3 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

Storage related

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x AURA RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x M.2 slot (Key E)

1 x S/PDIF Out header

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thunderbolt header

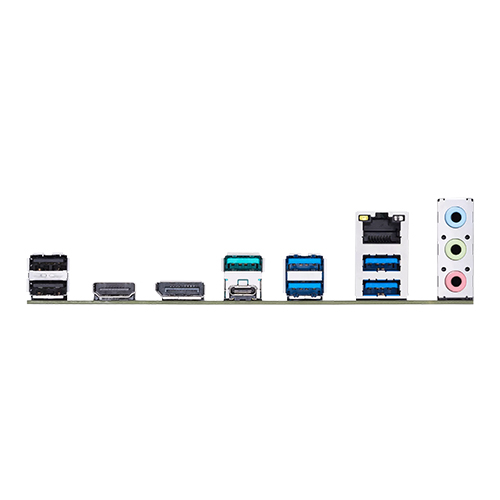

後方面板裝置連接插座

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

1 x USB 3.2 Gen 2 port (1 x Type-A)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x HDMI® port

1 x Intel® 1Gb Ethernet port

3 x Audio jacks

I/O控制器內建iTE® I/O 控制晶片
BIOS192 (128+64) Mb Flash ROM, UEFI AMI BIOS
附加工具程式

ASUS Exclusive Software

Armoury Crate

- AURA Sync

- Fan Xpert 4

AI Suite 3

-Performance And Power Saving Utility

TurboV EVO

EPU

DIGI+ VRM

ASUS CPU-Z

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

作業系統支援Windows 10 64 位元
PCB規格microATX
24.4cm x 24.4cm
                                                                                                           商品資訊若有誤植,以原廠公佈為主
